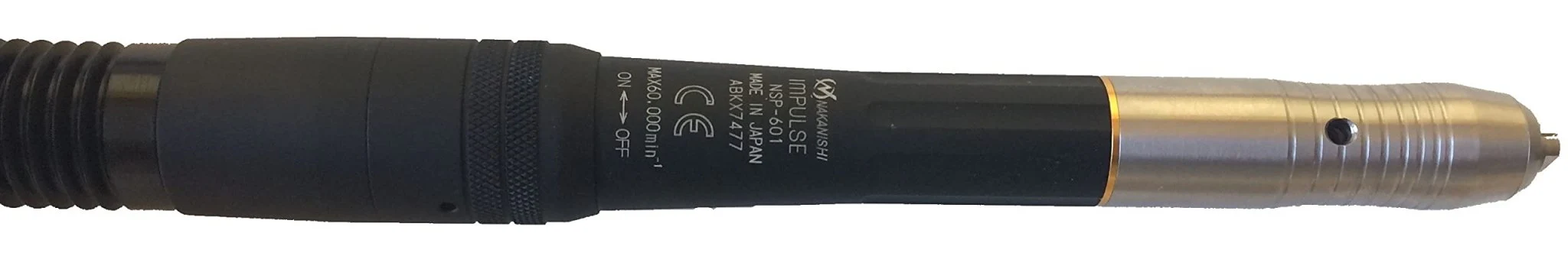

Nakanishi Ultra Precision Pencil Type Straight Impulse NSP601

Product Description

This ultra-precision tool features advanced machining technology for stable, vibration-free high-speed rotation. It delivers high power, strong torque, and exceptional durability, making it ideal for demanding tasks. The built-in silencer minimizes air exhaust noise, and the 360° free-swivel hose connection prevents hose twisting for smooth operation. Speed can be finely adjusted, and the tool starts up with smooth, controlled rotation.

Product Specification

- Operating Air Pressure: 0.4–0.6 MPa
- Compatible Shaft Diameter: 3 mm
- Exhaust Direction: Rear (with silencer-equipped exhaust hose)
- No-load Speed: 60,000 rpm
- Air Consumption: 0.165 m³/min (165 Nl/min)
- Hose Connection: 6 mm quick coupling
- Overall Length: 168 mm
- Collet Inner Diameter: 3.0 mm
- Weight: 165 g

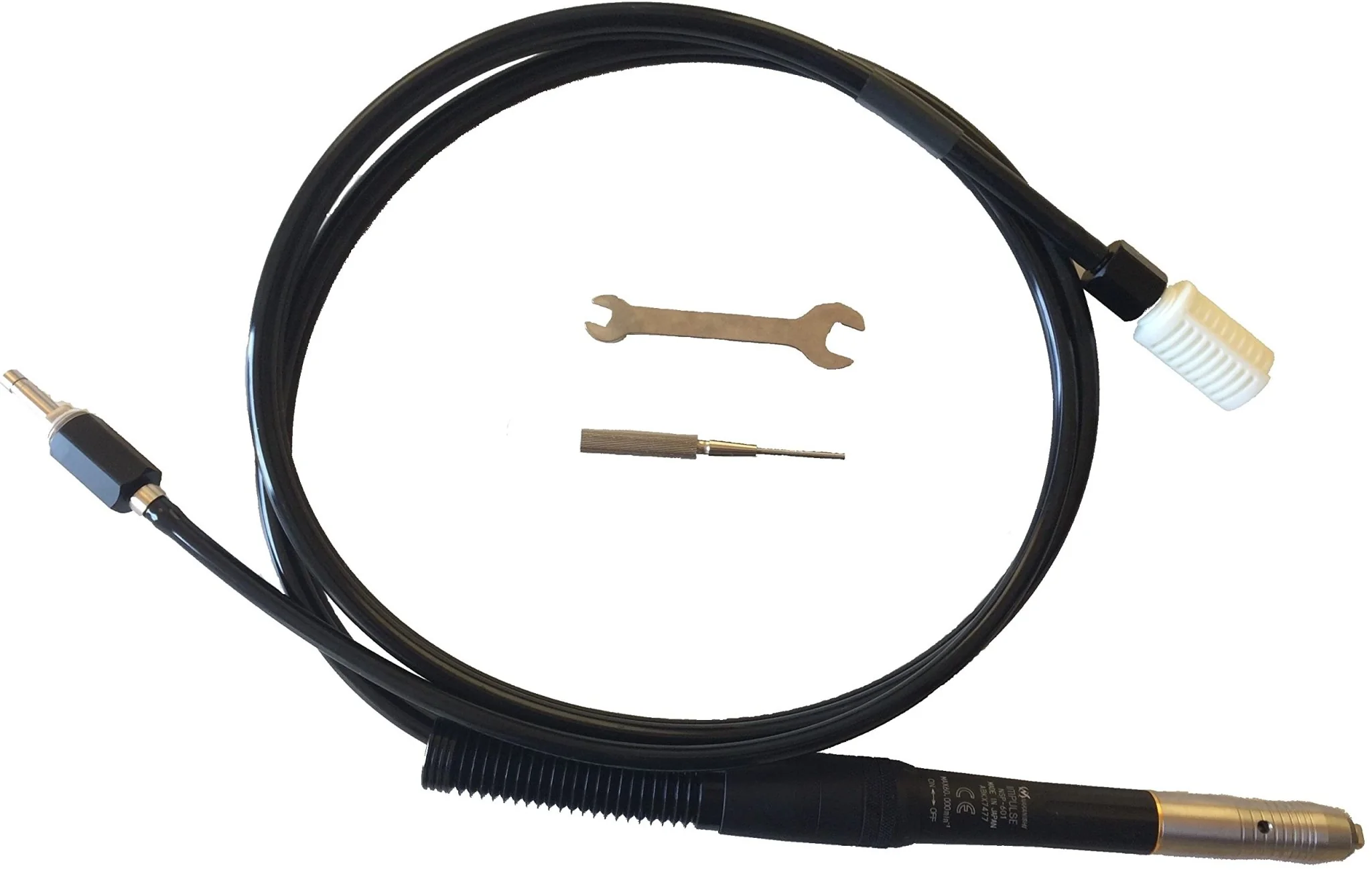

- Included Accessory: 3.0 mm collet (CHS-3.0)
- Country of Origin: Japan

Usage

This tool is suitable for mold finishing, deburring, grinding, and various types of precision micro-processing.

Notes

Please note that tip tools are sold separately.
