Mitutoyo Canta‑Mike MD‑E25
Product Description
IP65 digital micrometer for fast, precise measurement. Speed spindle advances 2.0 mm per thimble revolution for quick approach, while a ratchet thimble and speeder ratchet ensure stable, repeatable force. Key specs: measuring range 0–25 mm, resolution 0.001 mm, max permissible error ±1 μm, flatness 0.3 μm, measuring force 7–12 N (with speeder ratchet), weight 265 g.

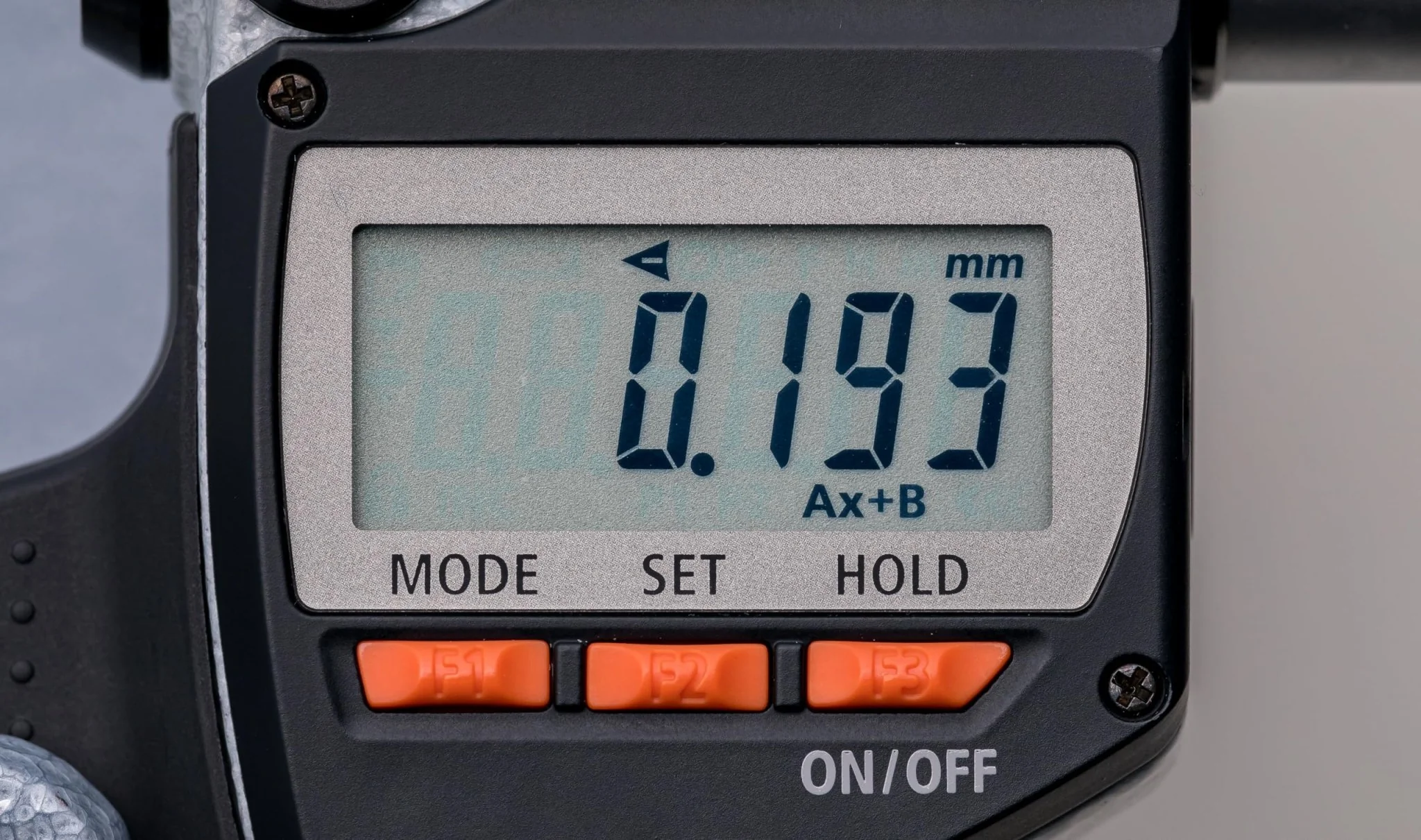

Designed for productivity and reliability: ABS origin set and INC zero set (with quick return to absolute), hold display, approach speed warning, tolerance judgment (OK/NG at a glance), Ax+B calculation, function lock, auto power ON/OFF with origin memory, large high-visibility display, and customizable keys. Error messages prevent invalid readings, and a low-battery indicator lights before measurements become impossible.

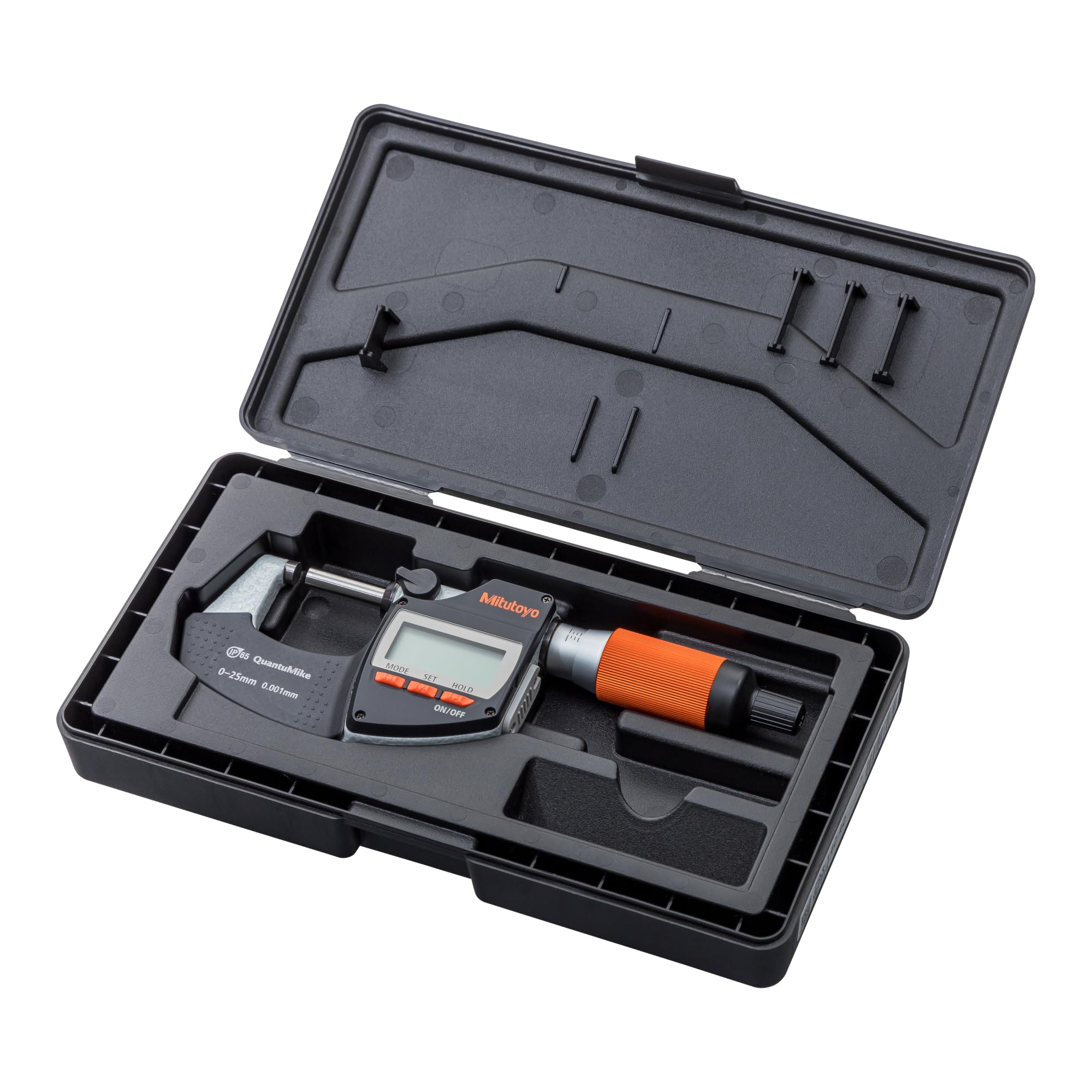

Bidirectional data communication via Digimatic S1 enables easy PC-based setup and asset management. Notes: optional cable and data input unit required; not compatible with U-WAVE; USB-ITPAK V3.0 must be installed on the PC. Included: storage case, spanner No. 301336, battery, instruction manual, and inspection report (not a calibration certificate). Standard bar is not included for the 0–25 mm range.
