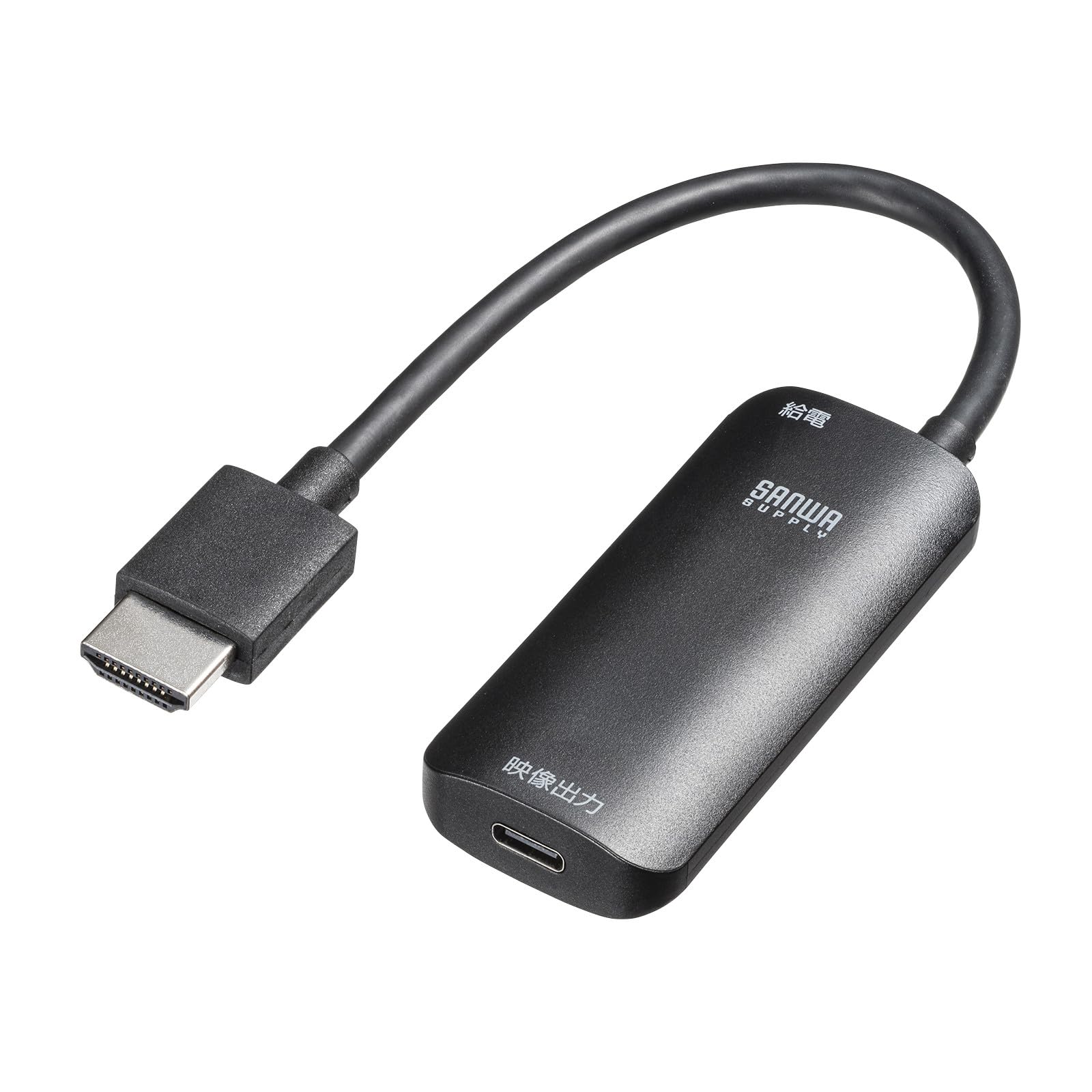

Sanwa Supply HDMI-Type-C (DP Alt mode) conversion adapter (4K/60Hz) AD-HD26TC

Product Description

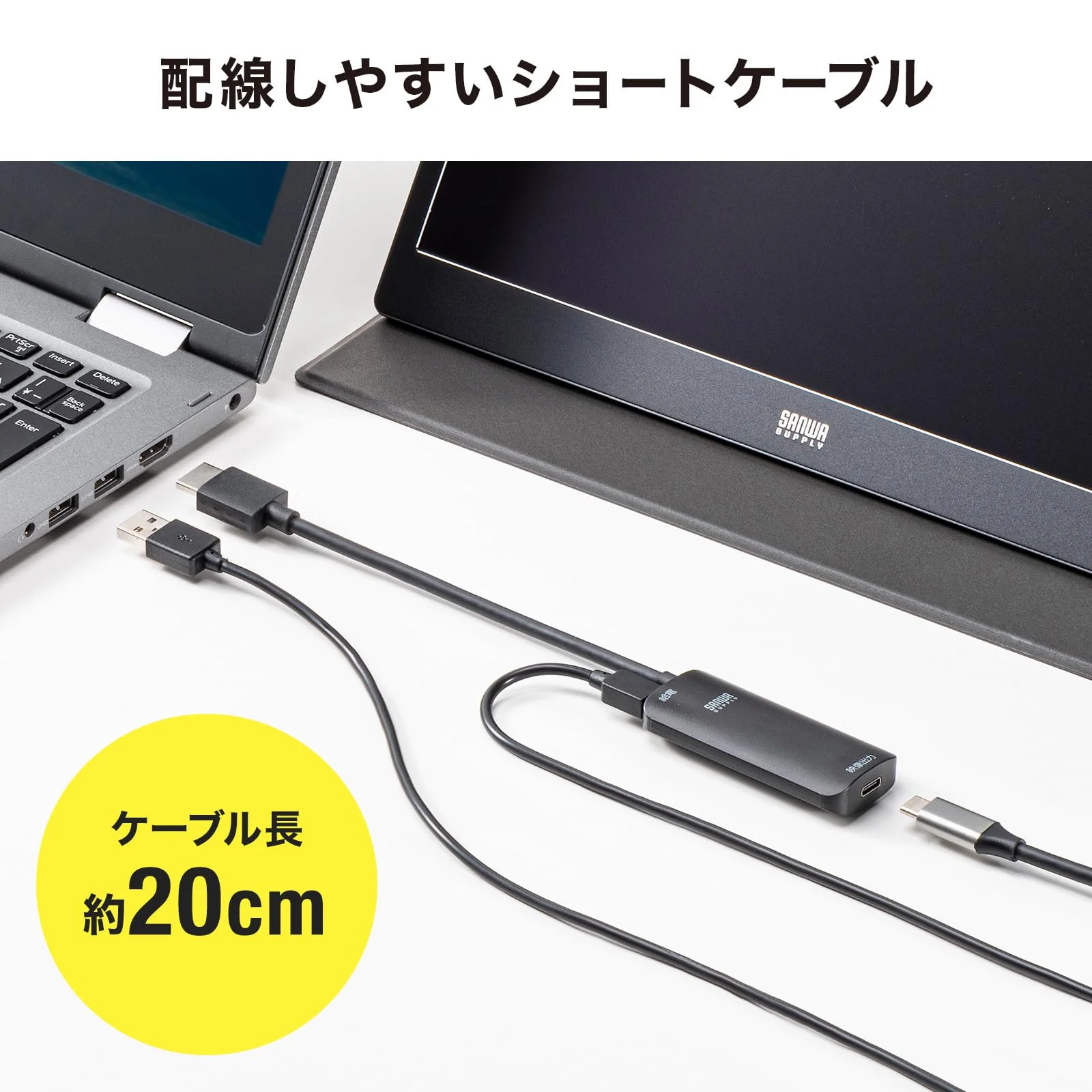

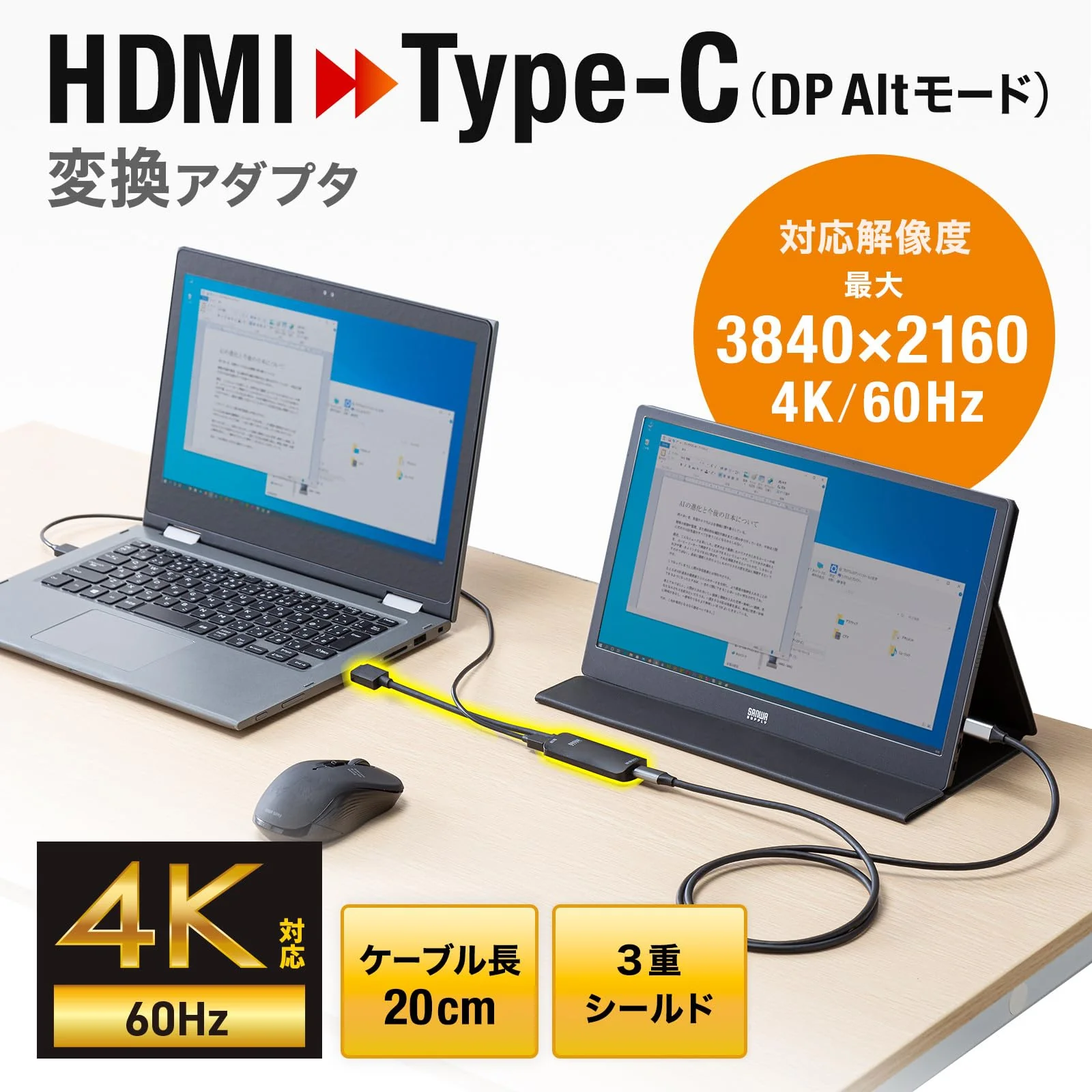

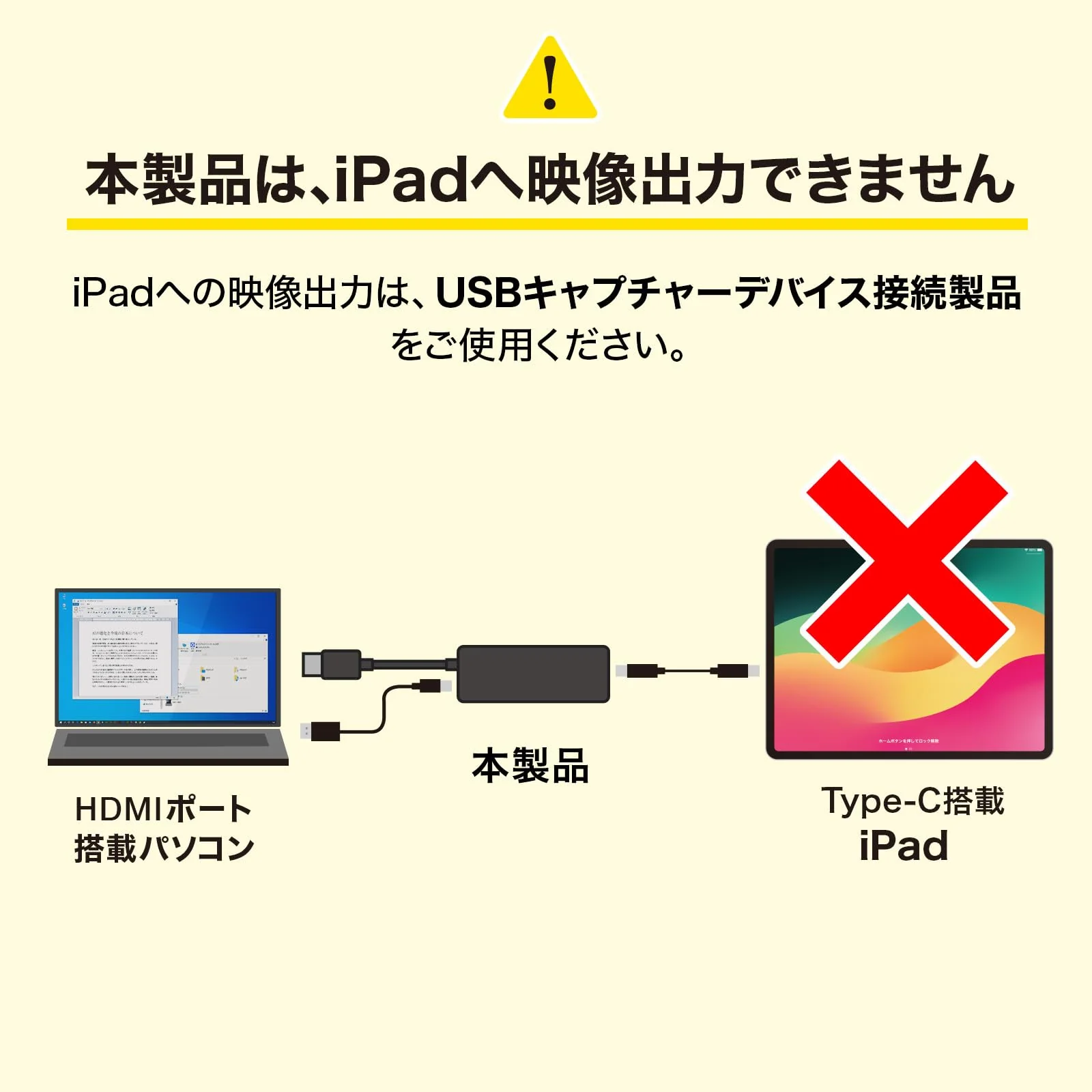

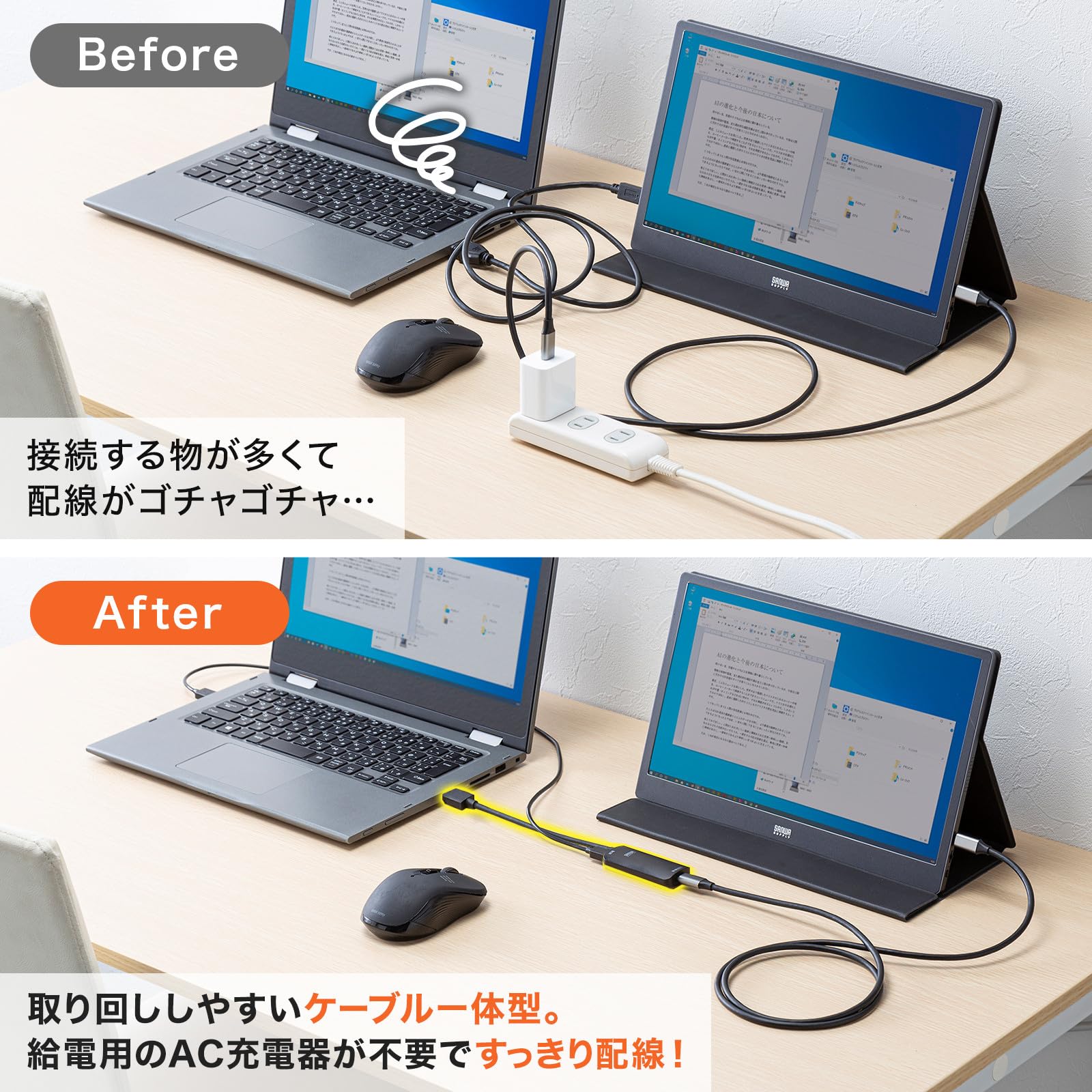

This device converts HDMI signals to USB Type-C DisplayPort Alt mode, allowing you to output video to mobile displays and other devices with USB Type-C input. It supports a 4K (3840 x 2160) resolution at 60Hz, ensuring high-quality video output. The microUSB power supply port (up to 5V2A) can be used to add power to the Type-C output, supplying power to connected mobile monitors and other devices. Please note that we do not guarantee compatibility with all devices.

Product Specification

Video Input Port: HDMI type A (19-pin) male
Video Output Port: USB Type-C female
Supported Resolutions: Maximum display resolution: 3840 x 2160/60Hz (4K/60Hz)
Adapter Type: HDMI
HDMI Standard: HDMI 2.0

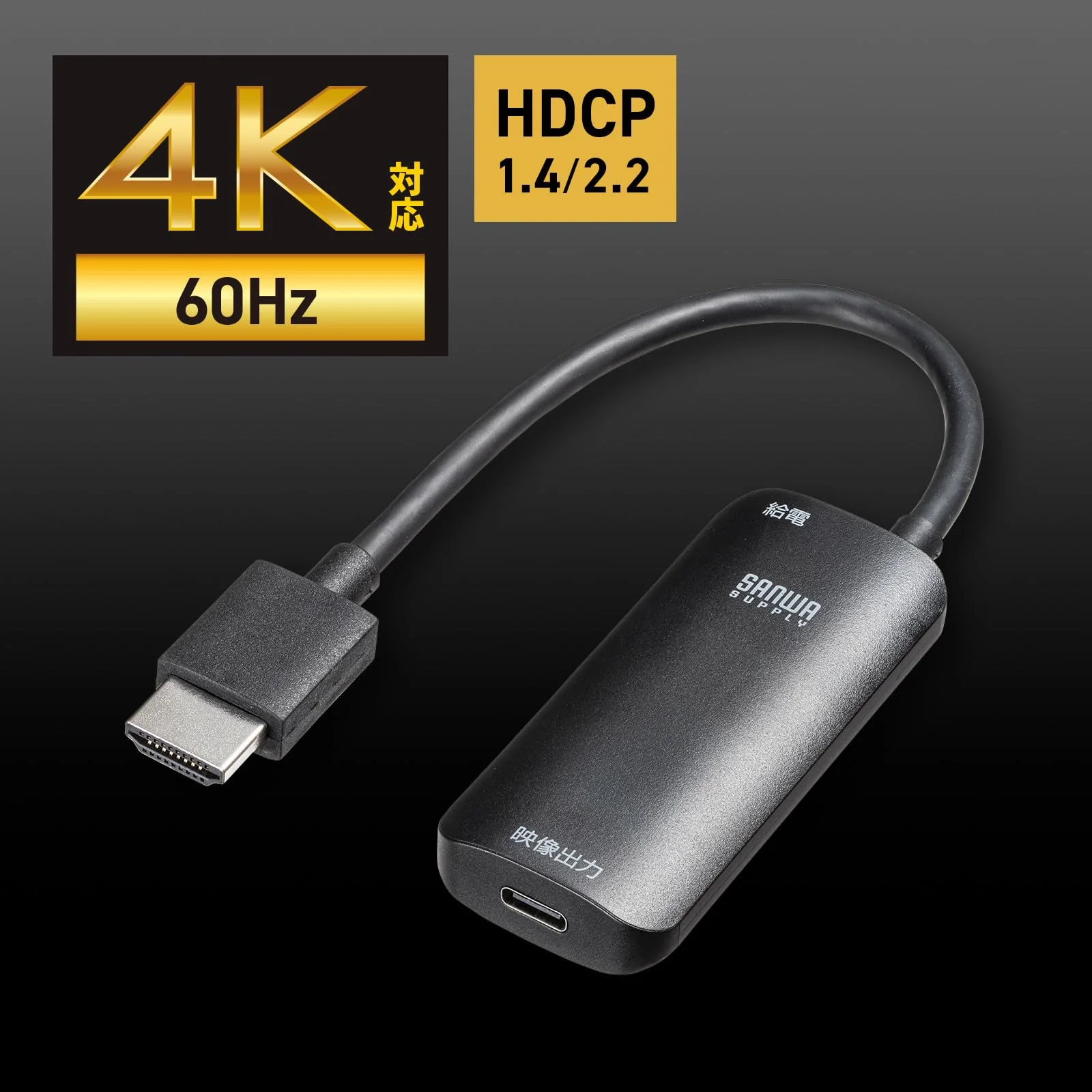

HDCP: HDCP 1.4/HDCP 2.2
Current Consumption: 5V/100mA

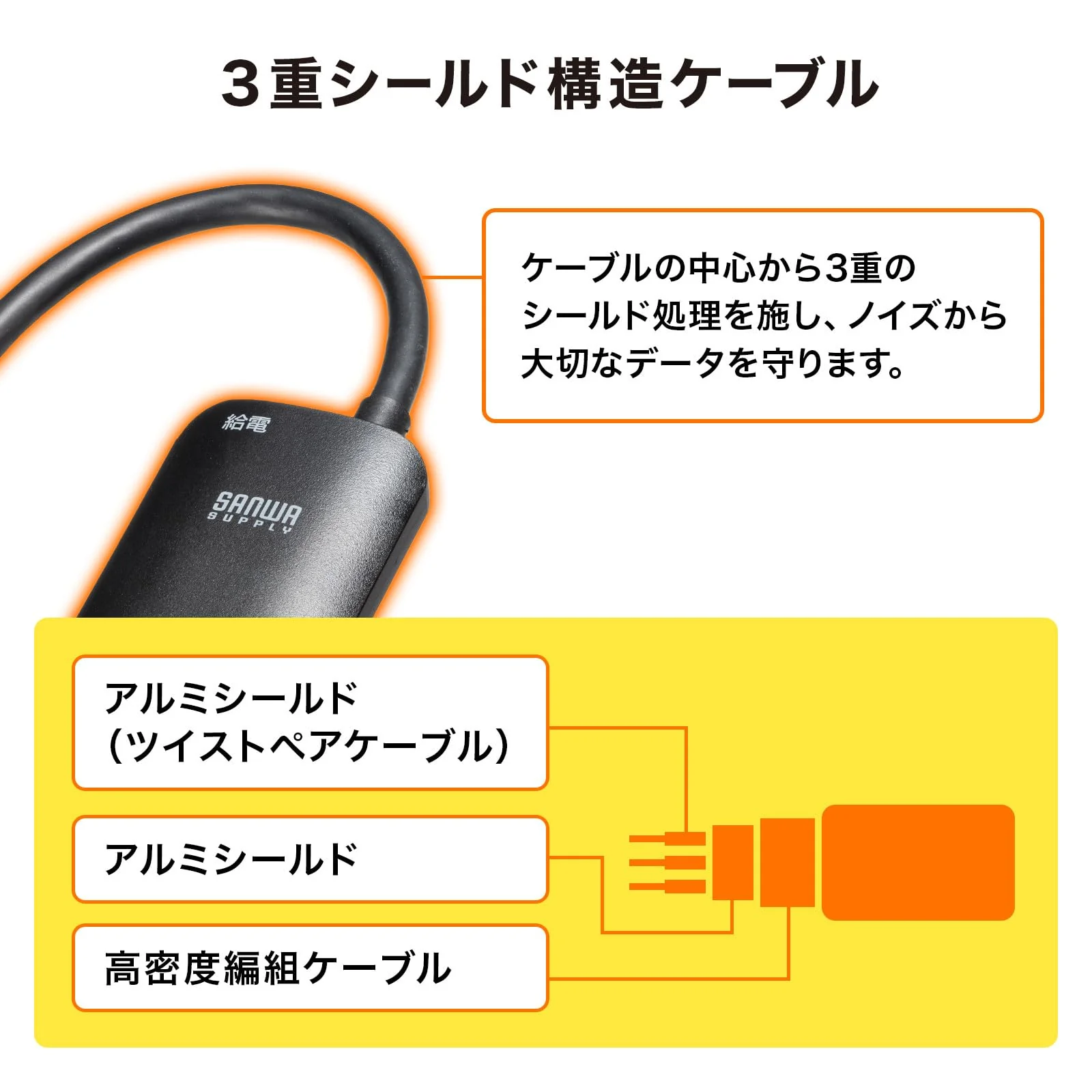

Shield Method: Triple shield (cable section)
Size: W71.5×D31.2×H11.8mm
Weight: Approx. 27g

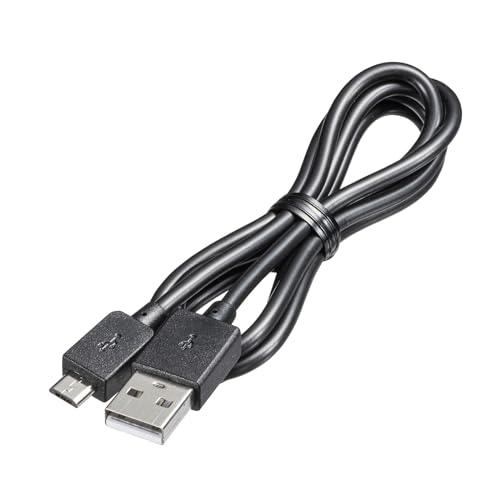

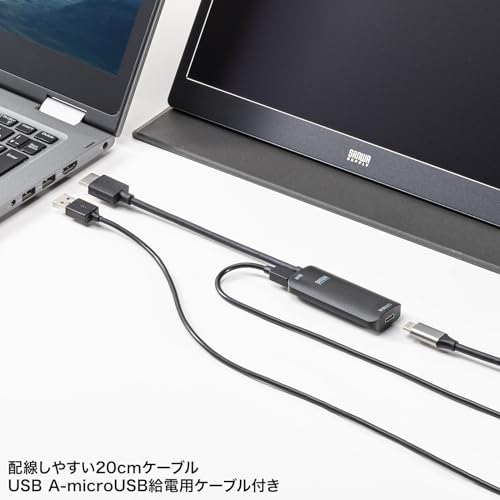

Set Contents: USB A to microUSB power supply cable (1m)

Usage

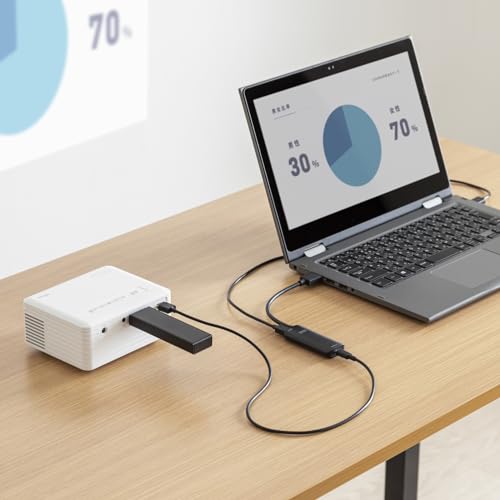

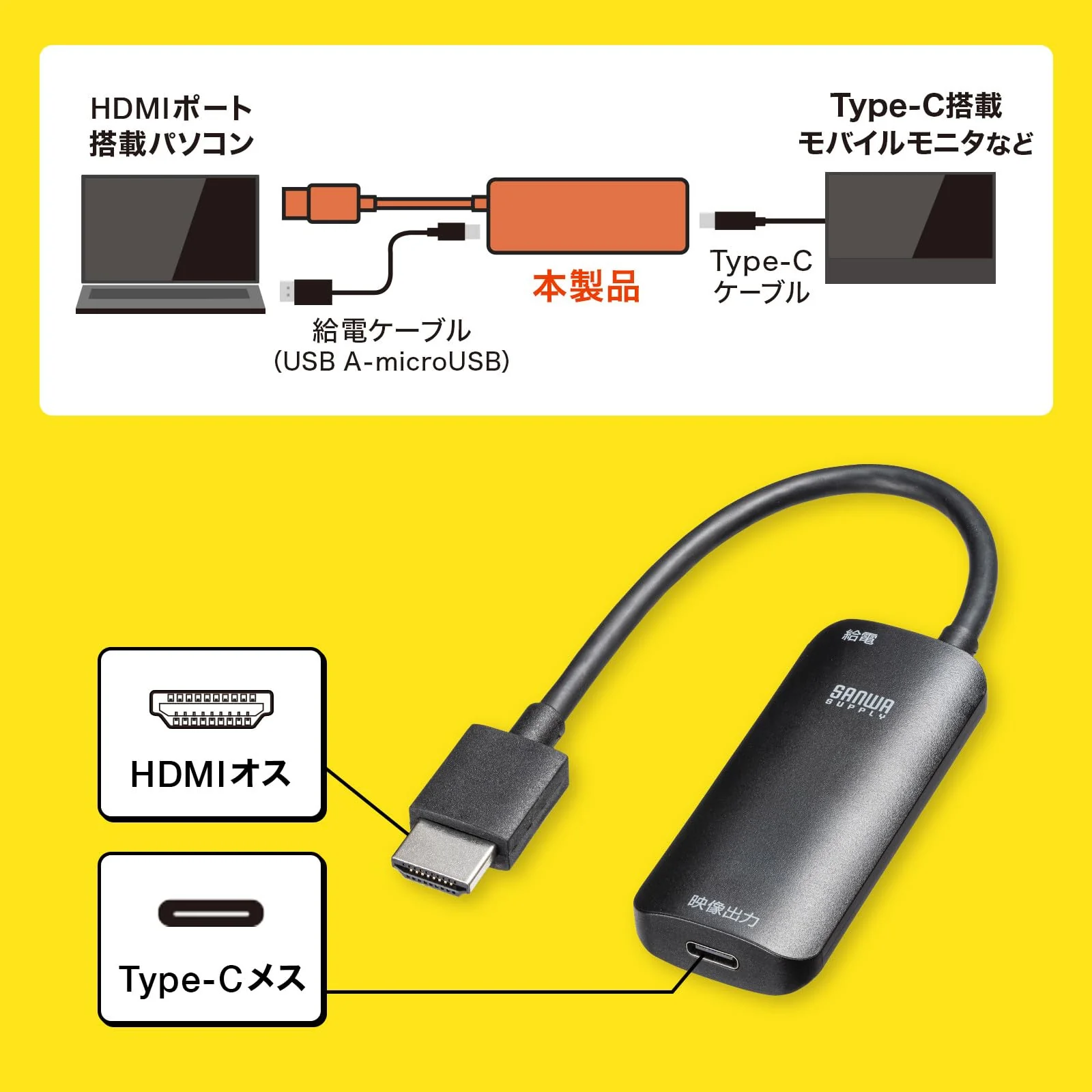

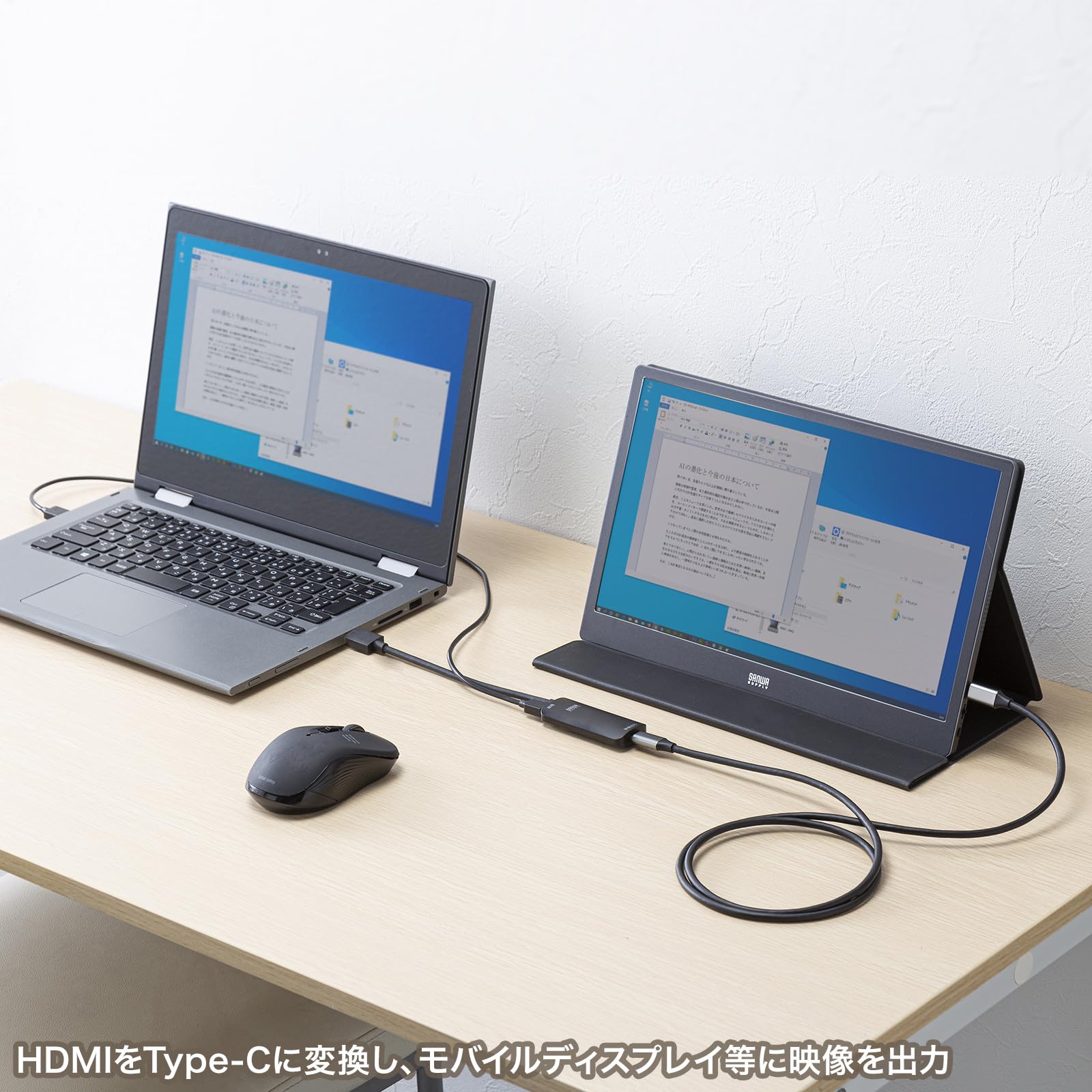

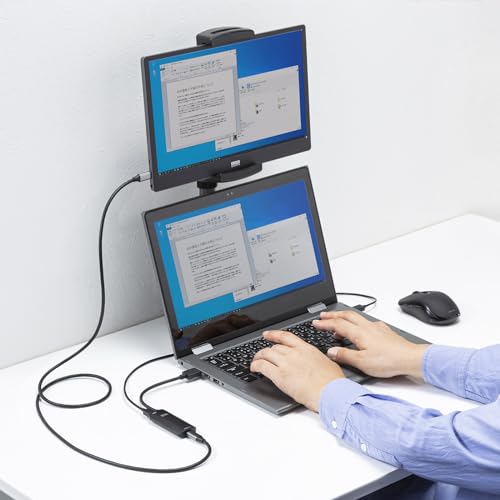

To use this device, connect the HDMI input port to your video source and the USB Type-C output port to your mobile display or other USB Type-C input device. If additional power is needed, connect the microUSB power supply port to a power source using the included USB A to microUSB power supply cable.
