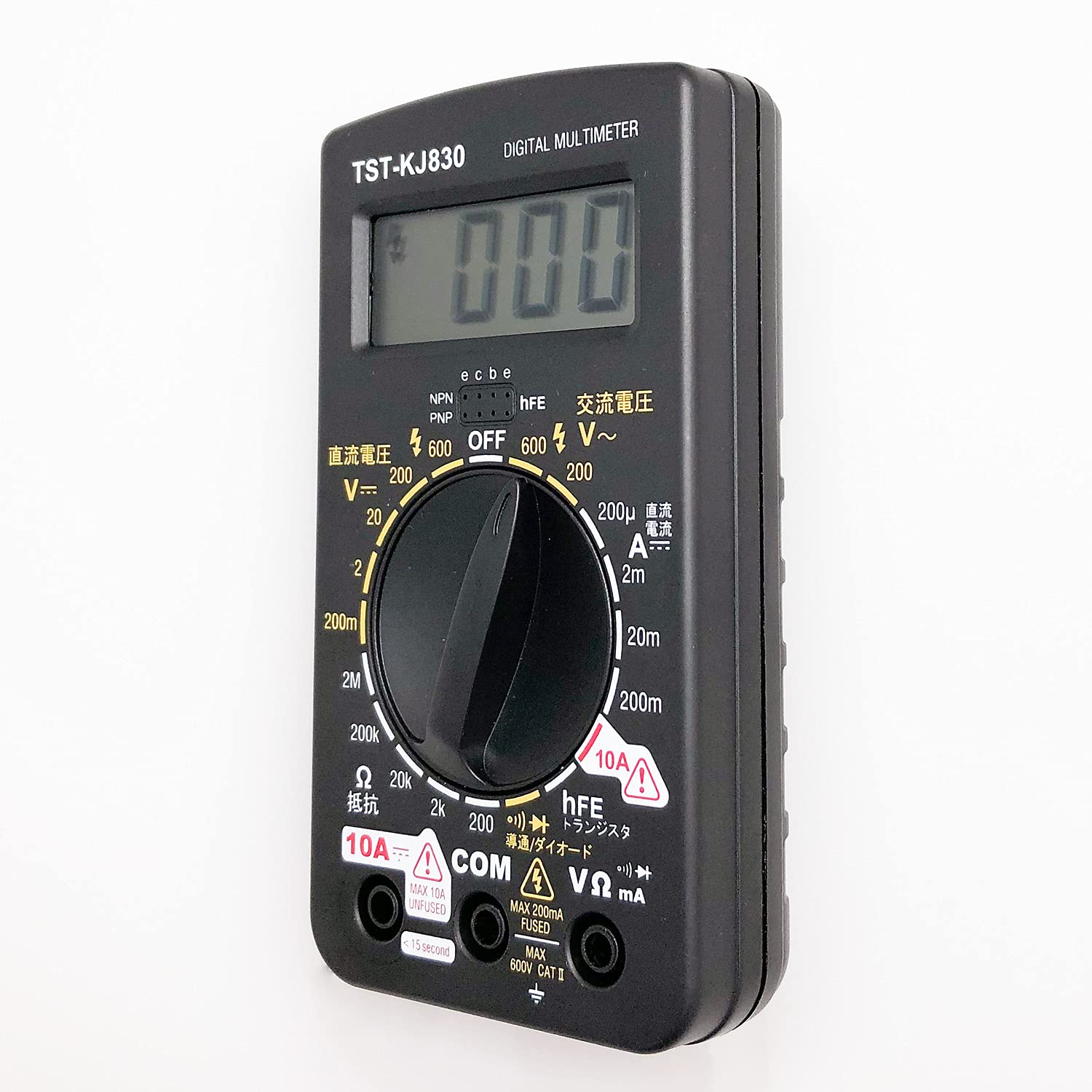

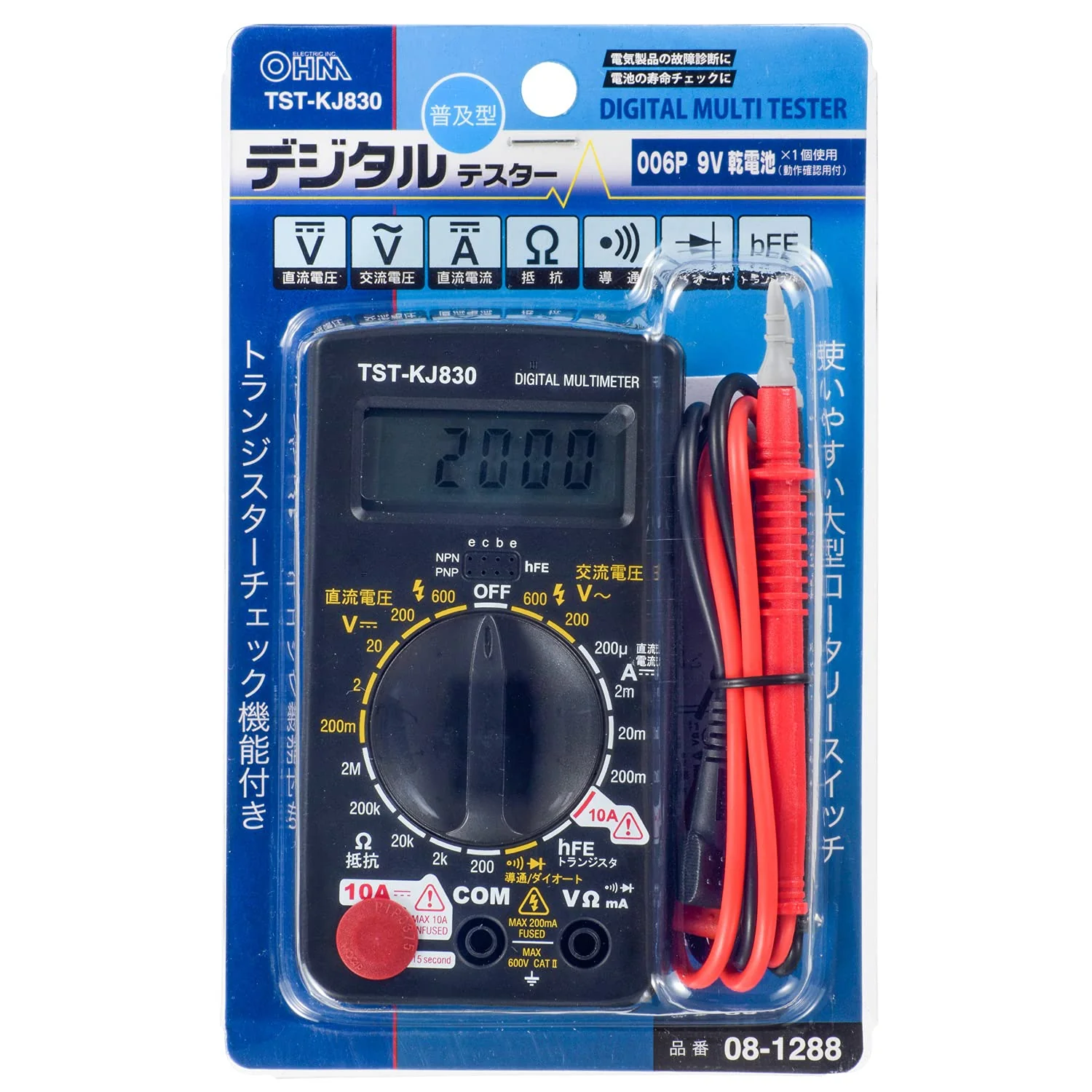

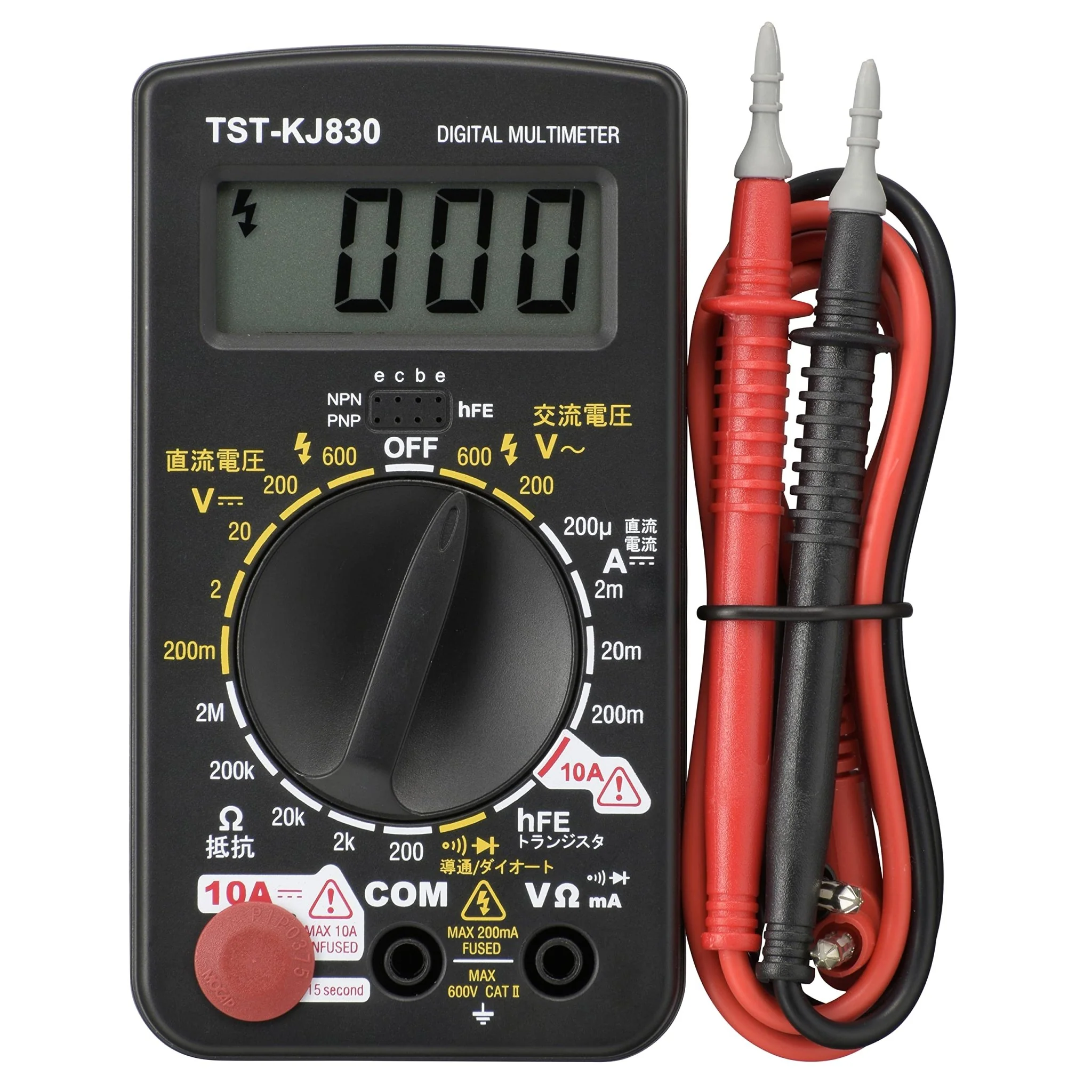

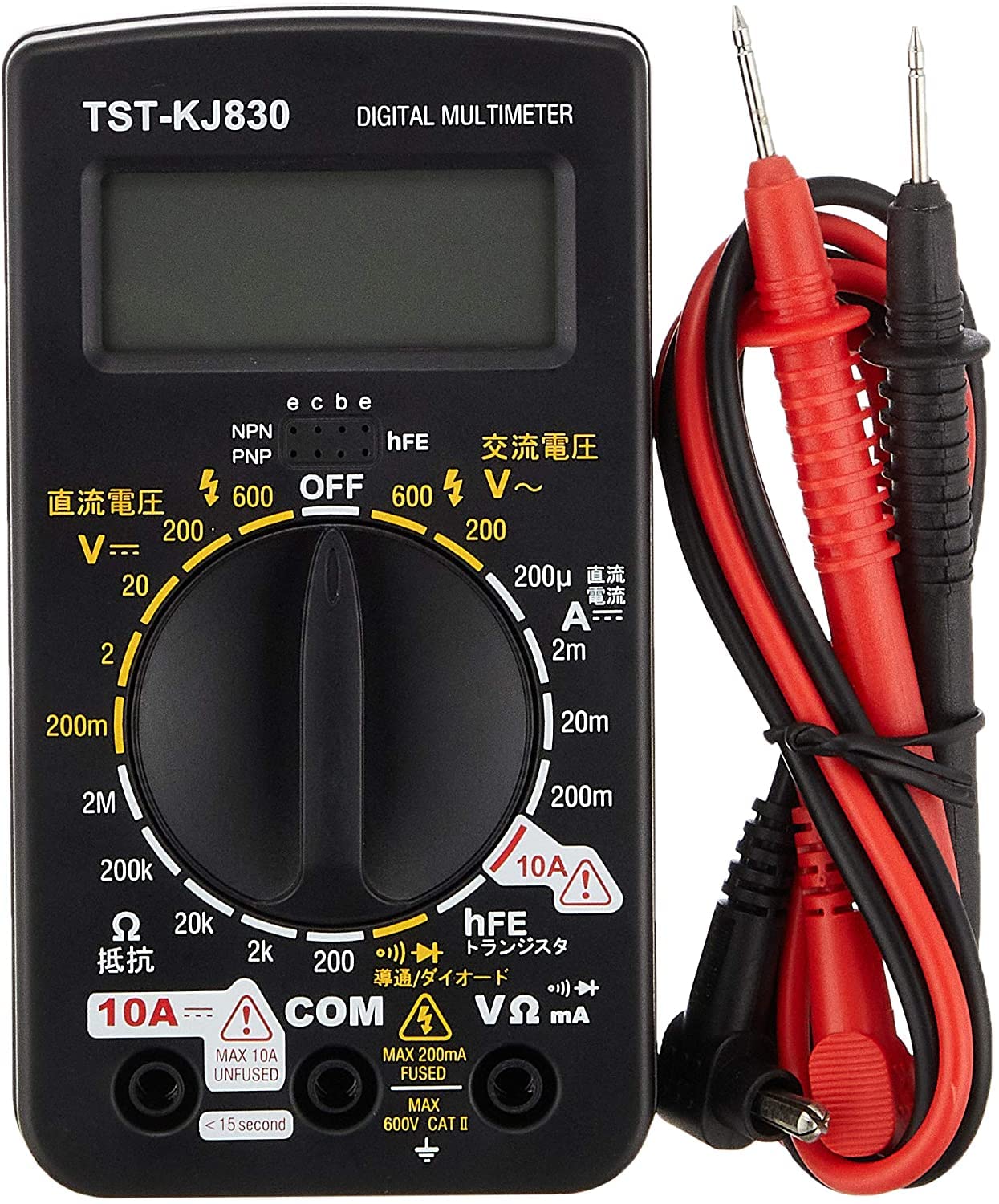

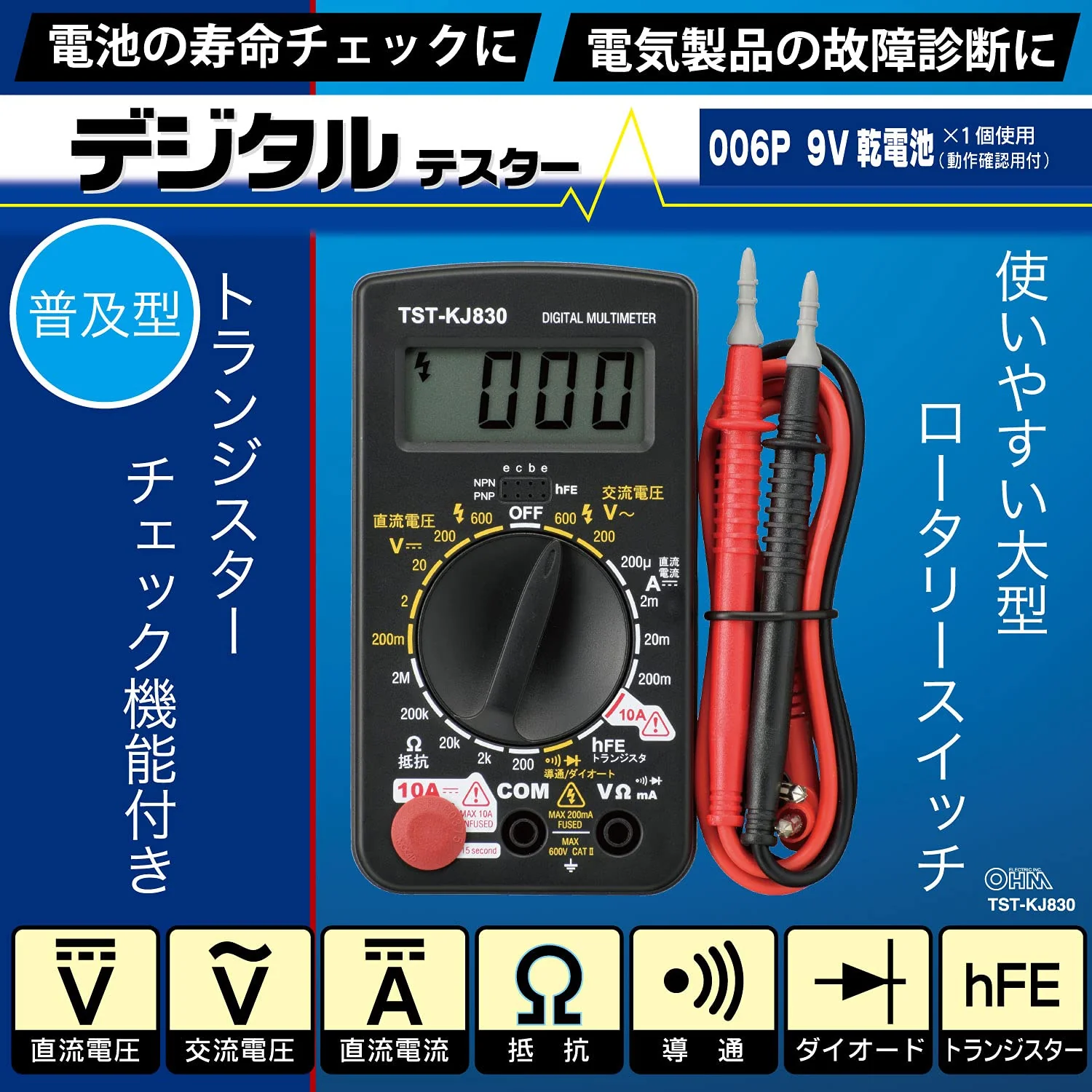

Ohm Electric Digital Tester Popular large rotary switch with transistor check function TST-KJ830 08-1288 OHM
Ohm Electric Digital Tester Popular large rotary switch with transistor check function TST-KJ830 08-1288 OHM
Product Description
This versatile digital multimeter is designed for diagnosing malfunctions in electrical products and checking battery life. It features a user-friendly large rotary switch and includes a transistor check function. The device is equipped with easy-to-read Japanese notation, making it accessible for a wide range of users.

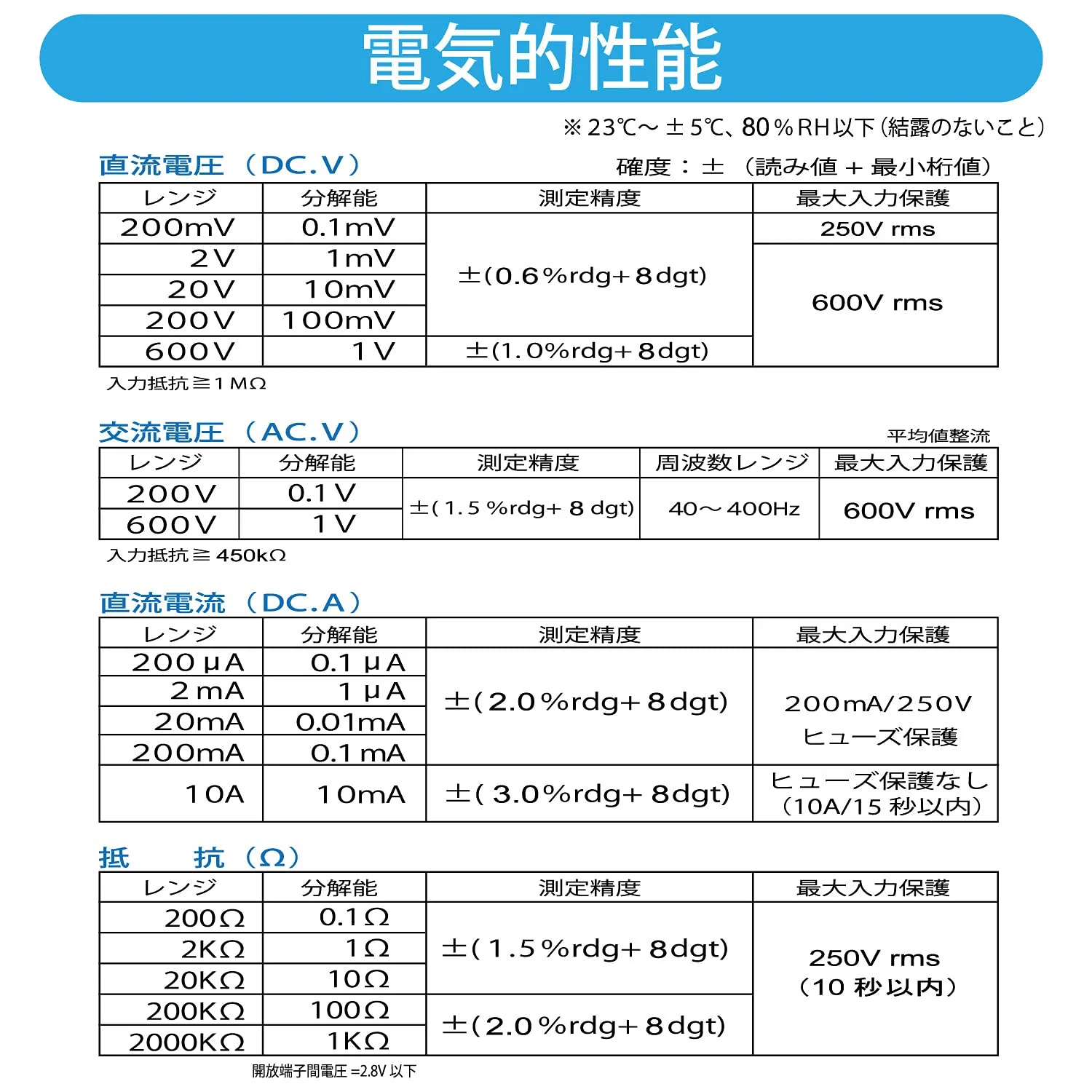

Product Specification
- Operating Method: Double integral
- Display: 3 1/2 digit digital display, maximum display "1999"
- Polarity Display: Automatic (only the "-" sign lights up)
- Overrange: "1" or "-1" mark lights up
- Measuring Functions: DC voltage, AC voltage, DC current, resistance, continuity, diode, transistor check
- Battery Voltage Indication: "Battery" symbol lights up when voltage is below operating voltage
- Power Supply: Uses 1 x 006P 9V dry-cell battery (for operation check)
Description
Product Description
This versatile digital multimeter is designed for diagnosing malfunctions in electrical products and checking battery life. It features a user-friendly large rotary switch and includes a transistor check function. The device is equipped with easy-to-read Japanese notation, making it accessible for a wide range of users.
Product Specification
- Operating Method: Double integral
- Display: 3 1/2 digit digital display, maximum display "1999"
- Polarity Display: Automatic (only the "-" sign lights up)
- Overrange: "1" or "-1" mark lights up
- Measuring Functions: DC voltage, AC voltage, DC current, resistance, continuity, diode, transistor check
- Battery Voltage Indication: "Battery" symbol lights up when voltage is below operating voltage
- Power Supply: Uses 1 x 006P 9V dry-cell battery (for operation check)
