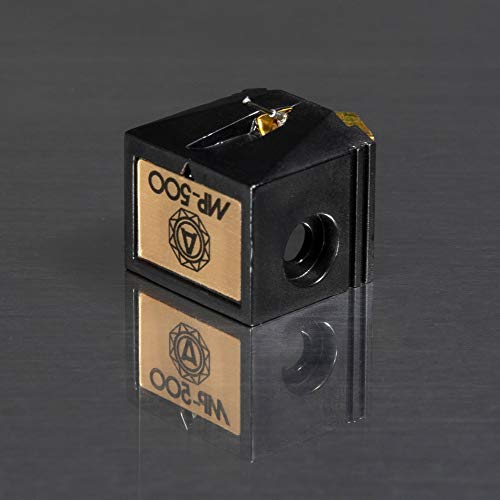

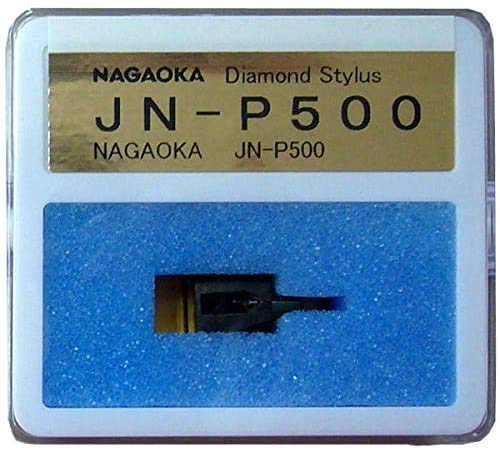

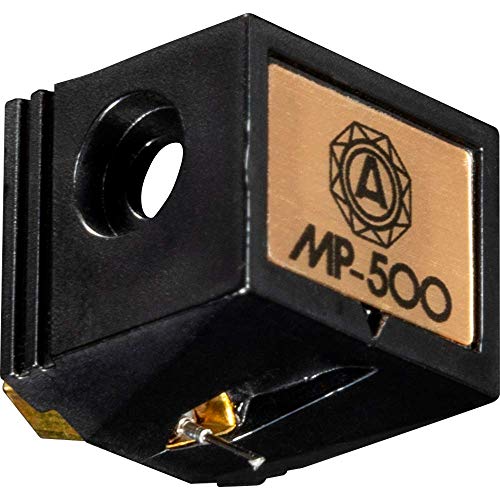

NAGAOKA Replacement Stylus for MP Type Stereo Cartridge JN-P500
Product Description
This product is a top-of-the-line model from the MP series, featuring a machined aluminum frame. It is designed to deliver high-quality sound with an output voltage of 3mV (5cm/SEC) and a frequency response ranging from 20Hz to 25KHz. The product ensures excellent channel separation of 27dB (1KHz) and maintains a channel balance of 1.0dB or less. The load resistance is set at 47KΩ. The cantilever is made of boron, and the needle tip is a line contact diamond, ensuring durability and precision.
Product Specification
- Model: MP series top-of-the-line model
- Frame: Machined aluminum
- Output voltage: 3mV (5cm/SEC)
- Frequency response: 20Hz~25KHz
- Channel separation: 27dB (1KHz)
- Channel balance: 1.0dB or less
- Load resistance: 47KΩ
- Cantilever: Boron
- Needle tip: Line contact diamond
- Appropriate needle pressure: 1.3~1.8g
Original: $1.04
-70%$1.04
$0.31
Description
Product Description
This product is a top-of-the-line model from the MP series, featuring a machined aluminum frame. It is designed to deliver high-quality sound with an output voltage of 3mV (5cm/SEC) and a frequency response ranging from 20Hz to 25KHz. The product ensures excellent channel separation of 27dB (1KHz) and maintains a channel balance of 1.0dB or less. The load resistance is set at 47KΩ. The cantilever is made of boron, and the needle tip is a line contact diamond, ensuring durability and precision.
Product Specification
- Model: MP series top-of-the-line model
- Frame: Machined aluminum
- Output voltage: 3mV (5cm/SEC)
- Frequency response: 20Hz~25KHz
- Channel separation: 27dB (1KHz)
- Channel balance: 1.0dB or less
- Load resistance: 47KΩ
- Cantilever: Boron
- Needle tip: Line contact diamond
- Appropriate needle pressure: 1.3~1.8g
