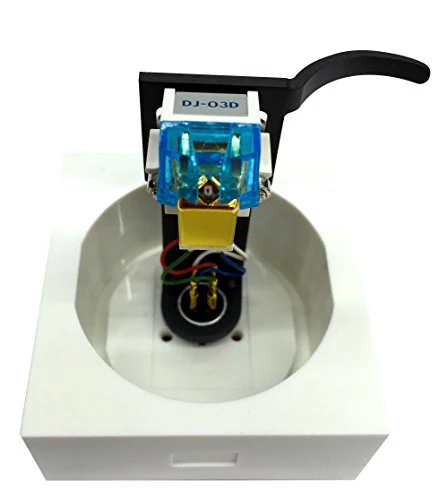

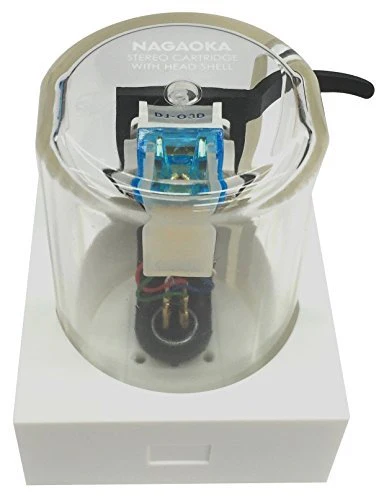

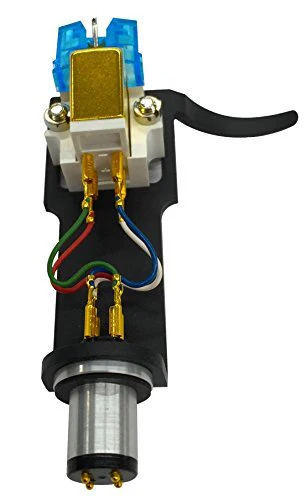

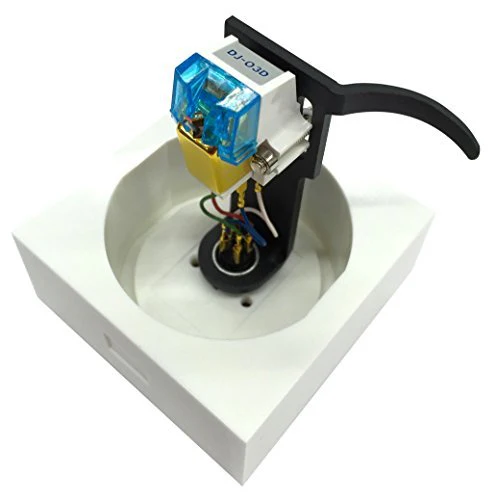

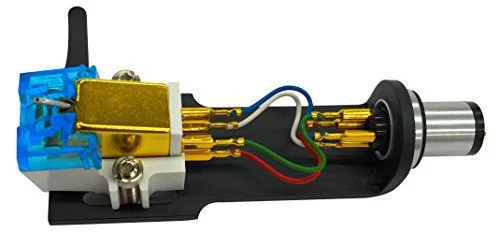

NAGAOKA cartridge DJ-03HD Scratched cartridge with headshell

Product Description

This product is a scratch-compatible, heavy needle pressure, high output type cartridge designed for turntables. It boasts an output voltage of 6mV at 5cm/sec, ensuring a robust sound performance. The frequency response ranges from 20Hz to 20KHz, providing a wide spectrum of sound. With a channel separation of 20dB at 1KHz and a channel balance of 1.5dB or less, it ensures a clear and balanced audio output. The cartridge is designed with a load resistance of 47KΩ and a load capacitance of 100pF, making it compatible with a variety of audio systems. The cantilever is made from aluminum alloy, and the needle tip features a 0.6mil conical, bonded diamond for precise tracking and durability. The recommended needle pressure is between 3 to 5g, ensuring optimal performance without damaging your records. The cartridge has a dead weight of 5.1g, and when combined with the head shell, it weighs 15.1g.

Product Specification

- Output Voltage: 6mV (5cm/sec)
- Frequency Response: 20Hz~20KHz
- Channel Separation: 20dB (1KHz)
- Channel Balance: 1.5dB or less
- Load Resistance: 47KΩ
- Load Capacitance: 100pF
- Cantilever: Aluminum Alloy
- Needle Tip: 0.6mil Conical, Bonded Diamond
- Proper Needle Pressure: 3~5g
- Cartridge Dead Weight: 5.1g
- Dead Weight with Head Shell: 15.1g
