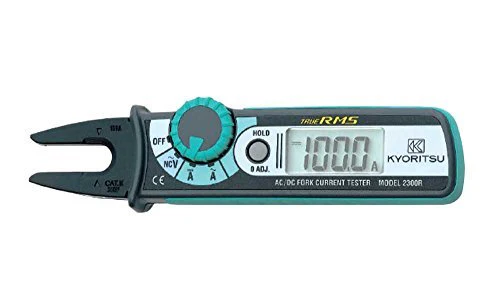

KYORITSU Fork Current Tester MODEL 2300R
DC current(A):100
AC current(A):100
DC voltage(V):-
AC voltage(V):-
Resistance(Ω):-
The sensor is effective in places with crowded electric wires, such as in power distribution panels. Open core type clamp sensor enables AC/DC current measurement. [AC current = 0~100.0A±2.0%rdg±5dgt(50/60Hz), DC current = 0~±100.0A±2.0%rdg±5dgt, Crest factor = 2.5, Voltage sensing function = NCV: Non-contact detection of voltage (both covered and bare wires), detects voltage over 80V Hi" indicator flashes and buzzer sounds intermittently when voltage of 80V or more is detected [Diameter of conductor to be measured] Max. φ10mm [Max. display] 1049 counts [Conforming standard] IEC61010-1CAT.III300V pollution degree 2 [Battery] AAA dry cell battery R03 (1.5V) x 2 (auto power off approx. 10 min)※Continuous operating time ACA: Approx. 10 minutes Continuous operating time ACA: approx. 46 hours DCA: approx. 52 hours [Dimensions] 161(L)×40(W)×30(D)mm [Weight] Approx. 110g (including batteries)
AC current(A):100
DC voltage(V):-
AC voltage(V):-
Resistance(Ω):-
The sensor is effective in places with crowded electric wires, such as in power distribution panels. Open core type clamp sensor enables AC/DC current measurement. [AC current = 0~100.0A±2.0%rdg±5dgt(50/60Hz), DC current = 0~±100.0A±2.0%rdg±5dgt, Crest factor = 2.5, Voltage sensing function = NCV: Non-contact detection of voltage (both covered and bare wires), detects voltage over 80V Hi" indicator flashes and buzzer sounds intermittently when voltage of 80V or more is detected [Diameter of conductor to be measured] Max. φ10mm [Max. display] 1049 counts [Conforming standard] IEC61010-1CAT.III300V pollution degree 2 [Battery] AAA dry cell battery R03 (1.5V) x 2 (auto power off approx. 10 min)※Continuous operating time ACA: Approx. 10 minutes Continuous operating time ACA: approx. 46 hours DCA: approx. 52 hours [Dimensions] 161(L)×40(W)×30(D)mm [Weight] Approx. 110g (including batteries)
$26.30
Original: $87.68
-70%KYORITSU Fork Current Tester MODEL 2300R—
$87.68
$26.30
Description
DC current(A):100
AC current(A):100
DC voltage(V):-
AC voltage(V):-
Resistance(Ω):-
The sensor is effective in places with crowded electric wires, such as in power distribution panels. Open core type clamp sensor enables AC/DC current measurement. [AC current = 0~100.0A±2.0%rdg±5dgt(50/60Hz), DC current = 0~±100.0A±2.0%rdg±5dgt, Crest factor = 2.5, Voltage sensing function = NCV: Non-contact detection of voltage (both covered and bare wires), detects voltage over 80V Hi" indicator flashes and buzzer sounds intermittently when voltage of 80V or more is detected [Diameter of conductor to be measured] Max. φ10mm [Max. display] 1049 counts [Conforming standard] IEC61010-1CAT.III300V pollution degree 2 [Battery] AAA dry cell battery R03 (1.5V) x 2 (auto power off approx. 10 min)※Continuous operating time ACA: Approx. 10 minutes Continuous operating time ACA: approx. 46 hours DCA: approx. 52 hours [Dimensions] 161(L)×40(W)×30(D)mm [Weight] Approx. 110g (including batteries)
AC current(A):100
DC voltage(V):-
AC voltage(V):-
Resistance(Ω):-
The sensor is effective in places with crowded electric wires, such as in power distribution panels. Open core type clamp sensor enables AC/DC current measurement. [AC current = 0~100.0A±2.0%rdg±5dgt(50/60Hz), DC current = 0~±100.0A±2.0%rdg±5dgt, Crest factor = 2.5, Voltage sensing function = NCV: Non-contact detection of voltage (both covered and bare wires), detects voltage over 80V Hi" indicator flashes and buzzer sounds intermittently when voltage of 80V or more is detected [Diameter of conductor to be measured] Max. φ10mm [Max. display] 1049 counts [Conforming standard] IEC61010-1CAT.III300V pollution degree 2 [Battery] AAA dry cell battery R03 (1.5V) x 2 (auto power off approx. 10 min)※Continuous operating time ACA: Approx. 10 minutes Continuous operating time ACA: approx. 46 hours DCA: approx. 52 hours [Dimensions] 161(L)×40(W)×30(D)mm [Weight] Approx. 110g (including batteries)
